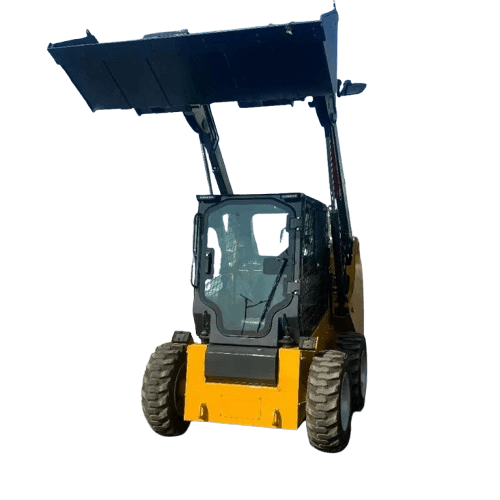

TA55M Mini wheeled skid steer loader
Product Information for TA55M Mini wheeled skid steer loader
Product Name: TA55M Mini wheeled skid steer loader
Product Features:
- Minimalist central control for easy use and operation.
- Hydraulic pilot operation for flexible and smooth handling.
- Standard cab for safety, reliability, dustproofing, and noise reduction.
- Equipped with rearview mirrors for safe operation and construction.
- Thickened bulldozer adjustable up and down for filling conveyor.
Engine Information:
- Model: Cummins HFC4DA1-2C3.
- Rated power: 36.8KW.
- Number of cylinders: 4.
- Intake method: naturally aspirated.
- Emission standard: National III.
Performance Parameters:
- Rated load: 890Kg.
- Repeated load: >1780.
- Maximum breakout force: >25KN.
- Bucket volume: 0.4m².
- Travel speed: 0 - 12km/h.
- Hydraulic flow: 55L/Min.
- Hydraulic pressure: 21Mpa.
- Fuel tank capacity: 80L.
- Operating weight: 2880±3%.
- Tire model: 10 - 10.5.
Application Range:
The TA55M Mini Wheeled Skid Steer Loader is suitable for a wide range of applications, including construction sites, landscaping, agriculture, mining, and industrial settings. It can handle tasks such as loading and unloading materials, excavating, grading, and snow removal. With its versatile attachments, it can be customized to meet specific job requirements.
Sales Channels and Market Reach:
Our TA55M Mini Wheeled Skid Steer Loader is available through a network of authorized dealers and distributors worldwide. We have a strong presence in both domestic and international markets, serving customers in various industries. Our sales team is dedicated to providing excellent customer service and support, ensuring that our customers get the best value for their investment.
|
Dimension Parameters
|
Details
|
|
Maximum operating height
|
3790mm
|
|
Height to bucket pin
|
3020mm
|
|
Cab roof height
|
2095±5% mm
|
|
Horizontal length of bucket on the ground
|
3450±5% mm
|
|
Horizontal length of bucket pin
|
2700±5% mm
|
|
Maximum horizontal distance at the bottom of the bucket
|
2846±5% mm
|
|
Maximum unloading height
|
2384±5% mm
|
|
Unloading distance
|
520±1% mm
|
|
Flipping angle of bucket on the ground
|
27±2mm
|
|
Flipping angle of bucket at maximum height
|
43±2mm
|
|
Wheelbase
|
1370mm
|
|
Ground clearance
|
185±2% mm
|
|
Tail length
|
1160±5% mm
|
|
Vehicle width
|
1640±2% mm
|
|
Bucket width
|
1800±2% mm
|
Attention: Skid steer loaders are highly customized products. Due to different customer requirements, different attachments, and different shipping destinations, the related costs will vary accordingly. Therefore, please contact our customer service before placing an order to confirm the relevant information, and then make the payment and arrange for the shipment.
