TA60 wheeled skid steer loader
TA60 wheeled skid steer loader

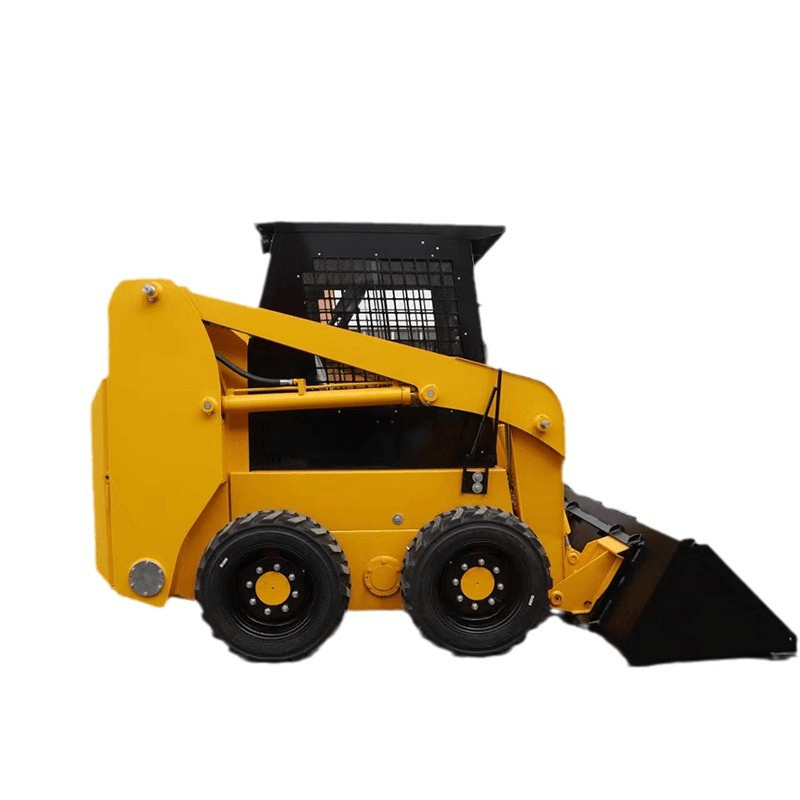

TA60 Skid Steer Loader
The TA60 skid steer loader is a high-performance machine designed for medium-duty applications, featuring a dead weight of 2800 kg and a rated load of 3200 kg. With a power output of 45 kW, it easily meets various construction demands. is equipped with a 0.4 m³ bucket capacity, offering strong power and excellent work efficiency, making it ideal for agriculture, horticulture, and construction. Its maximum dump height of 2400 mm provides outstanding operational flexibility and efficiency.
Key Features:
- Engine Power: 45 kW for robust performance.
- Operating Load: Rated load of 850 kg to handle medium-scale tasks.
- Bucket Capacity: 0.4 m³ for efficient material handling.
- Max Dump Height: 2400 mm, facilitating high dumping operations.
Benefits:
- Versatile Applications: Ideal for agriculture, landscaping, and construction projects.
- Compact Design: Allows easy maneuverability in tight spaces.
- Durability: Built with high-quality materials to withstand rigorous use.
Popular Regions:
- North America: Significant demand in construction and landscaping.
- Europe: Commonly used in agricultural and horticultural applications.
- Australia: Increasing usage in mining and construction activities.
Detailed Parameters
Specification | Details |
---|---|
Self Weight (kg) | 2800 |
Dead Weight (kg) | 3200 |
Bucket Capacity (m³) | 0.4 |
High Flow Flux (L/min) | / |
Rated Power (kW) | 45 |
Operating Load (kg) | 850 |
Tire (Track) Model | 12-16.5 |
Fuel Tank Capacity (L) | 80 |
Rated Hydraulic Flux (L/min) | 75 |
Max Speed (km/h) | 12 |
Overall Operating Height (mm) | 4000 |
Height to Bucket Hinge Pin (mm) | 3100 |
Height to Top of Cab (mm) | 2160 |
Height to Bottom of Level Bucket (mm) | 2933 |
Overall Length Without Bucket (mm) | 2750 |
Overall Length With Bucket (mm) | 3490 |
Dumping Angle at Maximum Height (°) | 40 |
Dumping Height (mm) | 2400 |
Dumping Reach (mm) | 750 |
Rollback of Bucket on Ground (°) | 30 |
Rollback of Bucket at Full Height (°) | 104 |
Wheelbase (mm) | 991 |
Ground Clearance (mm) | 205 |
Angle of Departure (°) | 20 |
Front Turning Radius Without Bucket (mm) | 1198 |
Front Turning Radius (mm) | 1958 |
Rear Turning Radius (mm) | 1728 |
Rear Axle to Bumper (mm) | 1208 |
Tread Width (mm) | 1500 |
Width (mm) | 1880 |
Bucket Width (mm) | 1880 |
