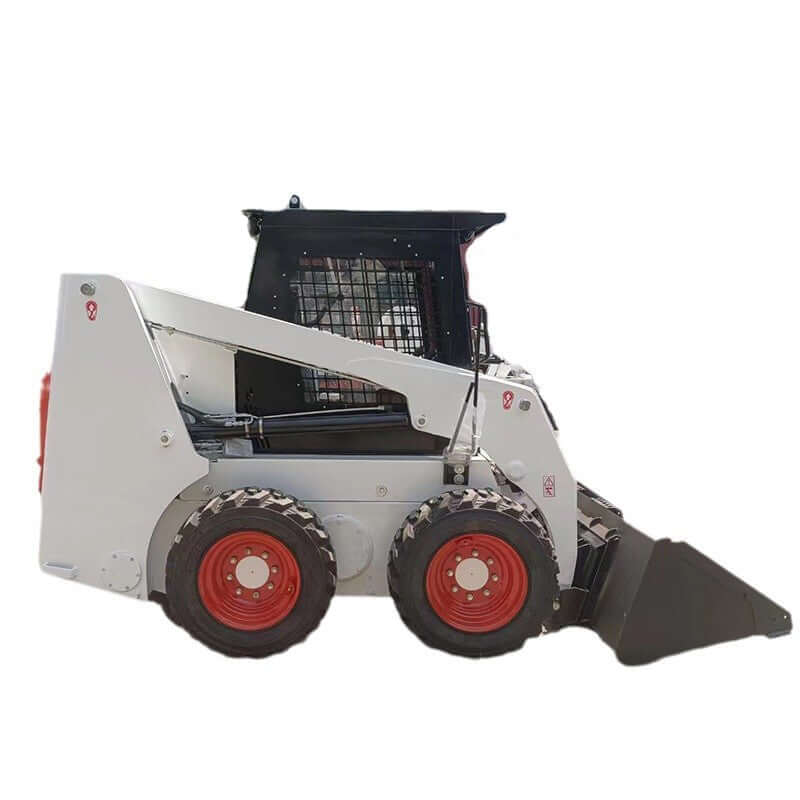

TA65 wheeled skid steer loader

TA65 wheeled skid steer loader

TA65 Skid Steer Loader

Key Features:

  • Engine Power: 55 kW, providing exceptional power for various tasks.
  • Operating Load: Rated load of 950 kg for heavy-duty applications.
  • Bucket Capacity: 0.5 m³ for effective material transport.
  • Max Dump Height: 2450 mm, enabling efficient loading and unloading.

Benefits:

  • High Efficiency: Capable of handling larger loads with ease.
  • Enhanced Stability: Suitable for a wide range of construction tasks.
  • User-Friendly Controls: Designed for easy operation and maneuverability.

Popular Regions:

  • United States: Frequently utilized in construction and site development.
  • Canada: Common in landscaping and agricultural operations.
  • Germany: Known for heavy machinery usage in various sectors.

Detailed Parameters

Specification Details
Self Weight (kg) 3400
Dead Weight (kg) 3400
Bucket Capacity (m³) 0.5
High Flow Flux (L/min) 120
Rated Power (kW) 55
Operating Load (kg) 950
Tire (Track) Model 12-16.5
Fuel Tank Capacity (L) 75
Rated Hydraulic Flux (L/min) 75
Max Speed ​​(km/h) 12
Overall Operating Height (mm) 4070
Height to Bucket Hinge Pin (mm) 3150
Height to Top of Cab (mm) 2160
Height to Bottom of Level Bucket (mm) 2983
Overall Length Without Bucket (mm) 2880
Overall Length With Bucket (mm) 3580
Dumping Angle at Maximum Height (°) 40
Dumping Height (mm) 2450
Dumping Reach (mm) 700
Rollback of Bucket on Ground (°) 30
Rollback of Bucket at Full Height (°) 104
Wheelbase (mm) 1115
Ground Clearance (mm) 205
Angle of Departure (°) 20
Front Turning Radius Without Bucket (mm) 1250
Front Turning Radius (mm) 2112
Rear Turning Radius (mm) 1774
Rear Axle to Bumper (mm) 1082
Tread Width (mm) 1500
Width (mm) 1880
Bucket Width (mm) 1880
