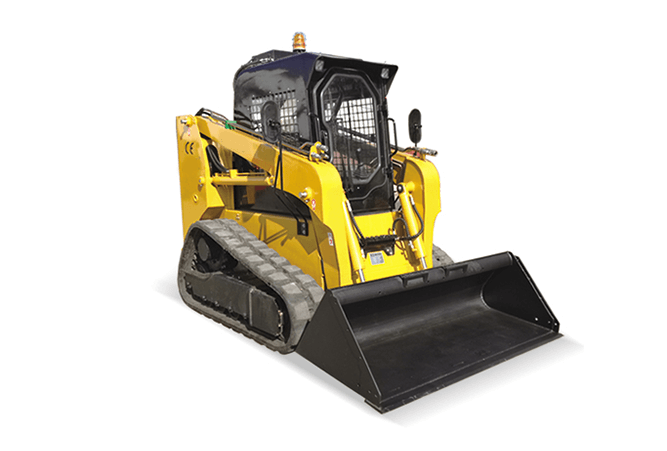

The TA125L Tracked Skid Steer Loader is a high-performance machine engineered for heavy-duty applications. Weighing 4800 kg with a rated load capacity of 1500 kg, it is powered by a 103 kW engine, delivering outstanding power output. The bucket capacity is 0.6 m³, and the maximum dump height is 2450 mm, making it perfect for large construction projects and industrial applications.
Key Features:
Engine Power: 103 kW for robust performance.
Operating Load: Rated load of 1500 kg for heavy-duty tasks.
Bucket Capacity: 0.6 m³ for efficient material handling.
Max Dump Height: 2450 mm for effective unloading.
Benefits:
Heavy-Duty Capability: Can manage substantial workloads.
Versatile Application: Appropriate for diverse industries.
Stable and Safe: Guarantees reliable operation.
Popular Regions:
North America: Commonly utilized in large construction and industrial undertakings.
Europe: In demand for major infrastructure projects.
Asia: Employed in significant construction developments.
Detailed Parameters
Specification
Value
Self Weight (kg)
4800
Dead Weight (kg)
4800
Bucket Capacity (m³)
0.6
High Flow Flux (L/min)
140
Rated Power (kW)
103
Operating Load (kg)
1500
Track Model
450*86
Fuel Tank Capacity (L)
90
Rated Hydraulic Flux (L/min)
88
Max Speed (km/h)
12/18
Overall Operating Height (mm)
4070
Height to Bucket Hinge Pin (mm)
3150
Height to Top of Cab (mm)
2160
Height to Bottom of Level Bucket (mm)
2983
Overall Length Without Bucket (mm)
3000
Overall Length With Bucket (mm)
3700
Dumping Angle at Maximum Height (°)
40
Dumping Height (mm)
2450
Dumping Reach (mm)
700
Rollback of Bucket on Ground (°)
30
Rollback of Bucket at Full Height (°)
104
Wheelbase (mm)
1500
Ground Clearance (mm)
200
Angle of Departure (°)
20
Front Turning Radius Without Bucket (mm)
1365
Front Turning Radius (mm)
2200
Rear Turning Radius (mm)
1742
Rear Axle to Bumper (mm)
938
Tread Width (mm)
1654
Width (mm)
2124
Bucket Width (mm)
2160
Attention: Skid steer loaders are highly customized products. Due to different customer requirements, different attachments, and different shipping destinations, the related costs will vary accordingly. Therefore, please contact our customer service before placing an order to confirm the relevant information, and then make the payment and arrange for the shipment.
