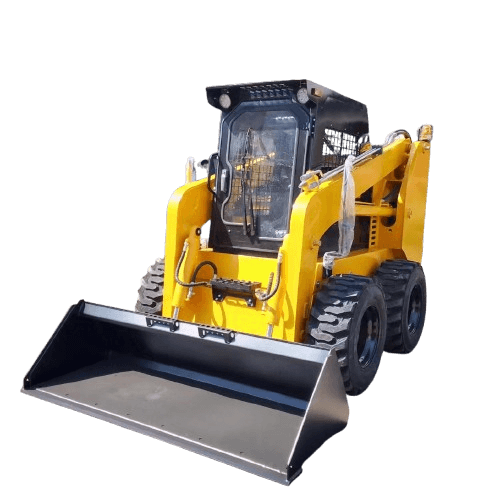

TA120 wheeled skid steer loader

TA120 Skid Steer Loader

The TA120 skid steer loader is a high-performance heavy-duty machine with a dead weight of 3600 kg and a rated load of 1200 kg. Powered by a 103 kW engine, it provides strong power output to ensure efficient operation. The TA120 features a bucket capacity of 0.55 m³ and a maximum dump height of 2450 mm, making it ideal for large-scale material handling and stacking. Its flexible operation and sturdy construction enable it to excel in fields such as construction and agriculture, making it an ideal choice for job sites.

TA120 Skid Steer Loader

Key Features:

• Engine Power: 103 kW, delivering powerful performance for heavy workloads.
• Operating Load: Rated load of 1200 kg, suitable for large-scale projects.
• Bucket Capacity: 0.55 m³ for effective material transport.
• Max Dump Height: 2450 mm, enabling efficient loading and unloading.

Benefits:

• High Performance: Engineered for demanding applications with durability.
• Operational Flexibility: Suitable for various construction and agricultural tasks.
• Cost-Efficiency: Offers excellent value with high output and reliability.

Popular Regions:

• United States: Leading market for heavy machinery and construction equipment.
• Canada: Commonly used in landscaping and agricultural operations.
• United Kingdom: Increasingly utilized in urban development projects.

Detailed Parameters

Specification	Details
Self Weight (kg)	3600
Dead Weight (kg)	4000
Bucket Capacity (m³)	0.55
High Flow Flux (L/min)	140
Rated Power (kW)	103
Operating Load (kg)	1200
Tire (Track) Model	12-16.5
Fuel Tank Capacity (L)	90
Rated Hydraulic Flux (L/min)	75
Max Speed ​​(km/h)	12/18
Overall Operating Height (mm)	4070
Height to Bucket Hinge Pin (mm)	3150
Height to Top of Cab (mm)	2160
Height to Bottom of Level Bucket (mm)	2983
Overall Length Without Bucket (mm)	2880
Overall Length With Bucket (mm)	3580
Dumping Angle at Maximum Height (°)	40
Dumping Height (mm)	2450
Dumping Reach (mm)	700
Rollback of Bucket on Ground (°)	30
Rollback of Bucket at Full Height (°)	104
Wheelbase (mm)	1185
Ground Clearance (mm)	205
Angle of Departure (°)	20
Front Turning Radius Without Bucket (mm)	1278
Front Turning Radius (mm)	2144
Rear Turning Radius (mm)	1857
Rear Axle to Bumper (mm)	1082
