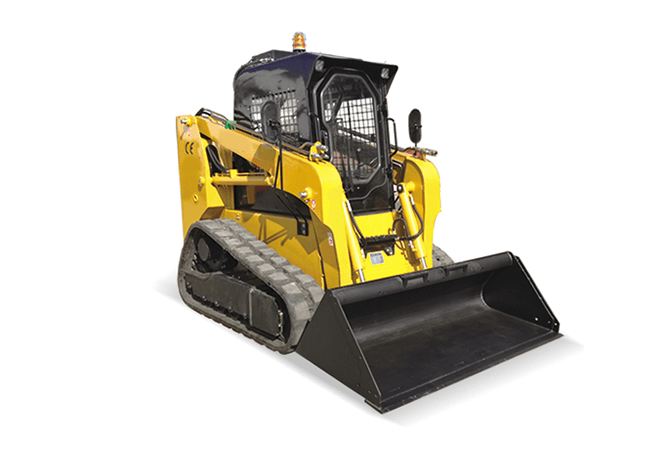

The TA65L Tracked Skid Steer Loader is a robust and efficient machine engineered for heavy workloads. It weighs 4200 kg with a rated load of 1000 kg and is powered by a 55 kW engine, providing high performance. The bucket capacity is 0.5 m³, and the maximum dump height is 2230 mm, making it suitable for construction and industrial applications.
Key Features:
Engine Power: 55 kW for powerful operation.
Operating Load: Rated load of 1000 kg for heavy tasks.
Bucket Capacity: 0.5 m³ for efficient material handling.
Max Dump Height: 2230 mm for easy unloading.
Benefits:
High Capacity: Can handle large amounts of material.
Versatile Use: Applicable in different industries.
Stable and Safe: Ensures reliable operation.
Popular Regions:
North America: Frequently used in construction sites.
Australia: Used in mining and construction.
South America: In demand for infrastructure projects.
Detailed Parameters
Specification
Value
Self Weight (kg)
3800
Dead Weight (kg)
4200
Bucket Capacity (m³)
0.5
High Flow Flux (L/min)
120
Rated Power (kW)
55
Operating Load (kg)
1000
Track Model
320X84
Fuel Tank Capacity (L)
90
Rated Hydraulic Flux (L/min)
80
Max Speed (km/h)
12/18
Overall Operating Height (mm)
3480
Height to Bucket Hinge Pin (mm)
2900
Height to Top of Cab (mm)
2150
Height to Bottom of Level Bucket (mm)
2730
Overall Length Without Bucket (mm)
2750
Overall Length With Bucket (mm)
3500
Dumping Angle at Maximum Height (°)
40
Dumping Height (mm)
2230
Dumping Reach (mm)
715
Rollback of Bucket on Ground (°)
30
Rollback of Bucket at Full Height (°)
104
Wheelbase (mm)
1500
Ground Clearance (mm)
200
Angle of Departure (°)
20
Front Turning Radius Without Bucket (mm)
1298
Front Turning Radius (mm)
2010
Rear Turning Radius (mm)
1714
Rear Axle to Bumper (mm)
890
Tread Width (mm)
1462
Width (mm)
1782
Bucket Width (mm)
1830
Attention: Skid steer loaders are highly customized products. Due to different customer requirements, different attachments, and different shipping destinations, the related costs will vary accordingly. Therefore, please contact our customer service before placing an order to confirm the relevant information, and then make the payment and arrange for the shipment.
