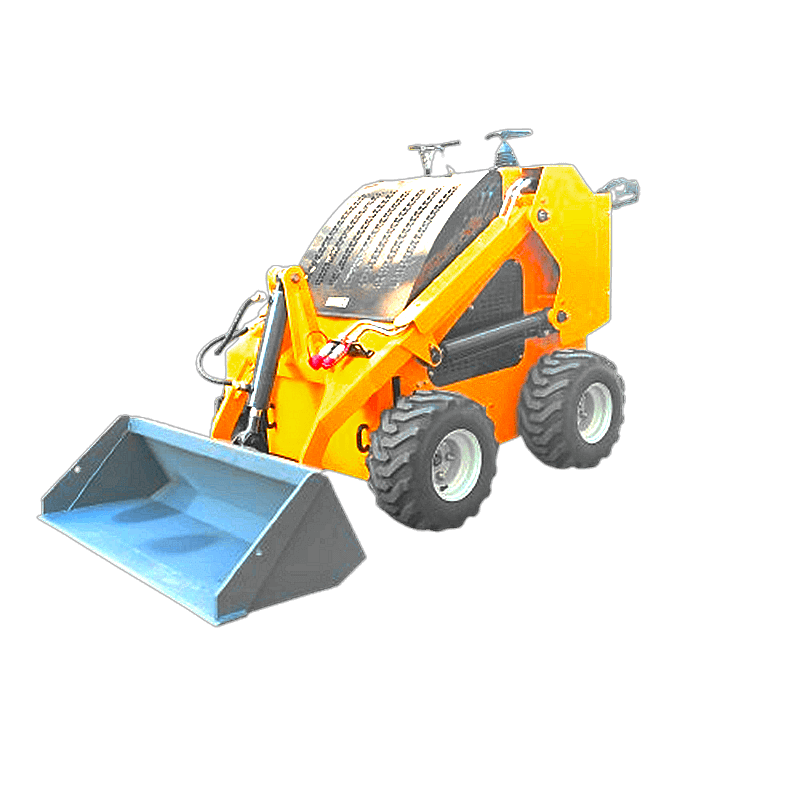

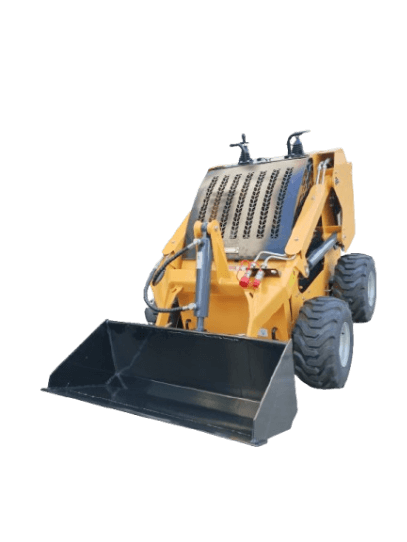

TA480(3) Mini Wheeled Skid Steer Loader

I. Compact and Miniaturized Design for Flexible Maneuvering

II. Outstanding Performance Parameters to Facilitate Efficient Operations

1. Powerful and Environmentally Friendly: Equipped with the engine of the renowned brand Yanmar 380, the rated power reaches 17.8 kW, with 3 cylinders and a natural air intake method, and it meets the EPA emission standards. This powerful power system not only provides a stable and reliable power output for the loader to ensure the smooth progress of various operation tasks but also takes full account of environmental protection factors, allowing you to use it without worrying about causing unnecessary impacts on the environment.
2. Excellent Loading and Digging Capabilities: The rated load is 350 kg, the maximum load can reach 480 kg, and the maximum breakout force is 4.5 KN. The bucket volume is 0.12 m³. Whether it is for transporting building materials, cleaning up debris, or carrying out some simple earth excavation operations, the TA480(3) can easily handle them with its good loading and digging capabilities, significantly improving work efficiency.
3. Precise Control of Working Heights and Angles: The maximum operating height reaches 2450mm, the height to the bucket pin is 1870mm, the maximum height with the bucket flat is 1810mm, the dumping height is 1510mm, the dumping distance is 450mm, the bucket's flipping angle on the ground is 27°, and the flipping angle at the highest point is 114°. With these precise working parameters, the TA480(3) performs excellently in loading and unloading materials and stacking operations, enabling it to accurately place materials at the required positions and fully meet the operation requirements in various operation scenarios.
4. Smooth Traveling and Easy Operation Experience: The traveling speed can be flexibly adjusted between 0 - 6km/h, the sum of the three working phases is only 9s, the working system pressure is maintained between 17 - 21bar, the operating mass is 1100 kg, and it is paired with 18*8.5 - 8 type tires. These parameters ensure that the loader can travel smoothly and respond quickly to operation instructions within the operation site, allowing operators to easily control it for efficient and precise operation.

III. Wide Range of Applications for Multiple Industries

1. Construction Field: In small-scale construction projects such as rural self-built houses and indoor and outdoor renovations of small commercial buildings, the TA480(3) can be used to transport building materials such as cement, sand, and bricks, clean up construction waste on the site, and assist in completing some basic earth excavation and leveling work, greatly improving the construction efficiency and being a capable helper for small-site operations in construction.
2. Agricultural Production: For small farms, orchards, or vegetable gardens, it can be used to transport fertilizers, pesticides, and agricultural products, and can also assist in performing some simple land plowing and ditch cleaning operations, providing convenient mechanized support for agricultural production activities and effectively reducing labor intensity.
3. Horticulture and Landscape Maintenance: In parks, residential community gardens, etc., the TA480(3) can be used to transport flowers, green plants, landscape stones, etc. materials, and perform tasks such as flower bed trimming and lawn maintenance. With its compact and flexible characteristics, it can complete various tasks without damaging the landscape environment, helping to create beautiful landscape environments.
4. Warehousing and Logistics Industry: In narrow warehouse aisles, the TA480(3) can easily transport goods, organize shelves, and accurately place goods at the specified positions, improving the utilization rate of warehouse space and the efficiency of logistics operations, being an ideal choice for handling small-scale goods transportation in warehousing and logistics.
