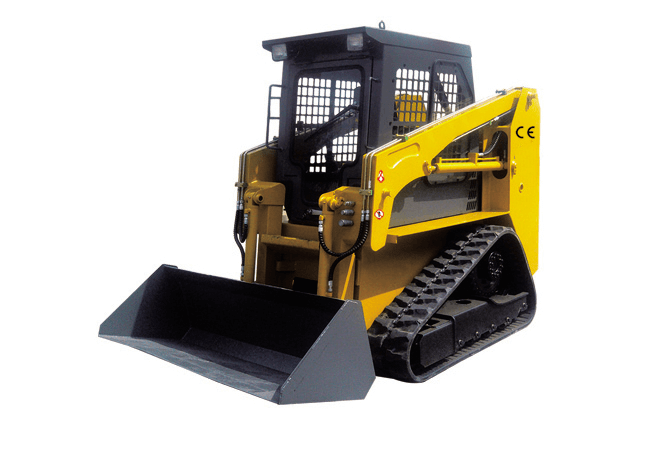

The TA50L Tracked Skid Steer Loader is a powerful and reliable machine designed for heavy-duty applications. Weighing 3000 kg with a rated load capacity of 700 kg, it is equipped with a 36 kW engine to handle demanding tasks effectively. The bucket capacity is 0.3 m³, and it has a maximum dump height of 2100 mm, making it suitable for construction, logistics, and agriculture.
Key Features:
Engine Power: 36 kW for efficient operation.
Operating Load: Rated load of 700 kg for heavy-duty tasks.
Bucket Capacity: 0.3 m³ for material handling.
Max Dump Height: 2100 mm for unloading operations.
Benefits:
Heavy-Duty Performance: Capable of handling tough projects.
Versatile Application: Useful in multiple industries.
Stable Operation: Ensures safety on different terrains.
Popular Regions:
North America: Commonly used in construction and related fields.
Europe: In demand for various engineering projects.
Asia: Employed in infrastructure development.
Detailed Parameters
Specification
Value
Self Weight (kg)
2800
Dead Weight (kg)
3000
Bucket Capacity (m³)
0.3
High Flow Flux (L/min)
-
Rated Power (kW)
36
Operating Load (kg)
700
Track Model
300X52.5
Fuel Tank Capacity (L)
50
Rated Hydraulic Flux (L/min)
60
Max Speed (km/h)
10
Overall Operating Height (mm)
3350
Height to Bucket Hinge Pin (mm)
2770
Height to Top of Cab (mm)
2050
Height to Bottom of Level Bucket (mm)
2603
Overall Length Without Bucket (mm)
2300
Overall Length With Bucket (mm)
2950
Dumping Angle at Maximum Height (°)
40
Dumping Height (mm)
2100
Dumping Reach (mm)
790
Rollback of Bucket on Ground (°)
30
Rollback of Bucket at Full Height (°)
104
Wheelbase (mm)
1240
Ground Clearance (mm)
140
Angle of Departure (°)
20
Front Turning Radius Without Bucket (mm)
1064
Front Turning Radius (mm)
1825
Rear Turning Radius (mm)
1264
Rear Axle to Bumper (mm)
594
Tread Width (mm)
1102
Width (mm)
1402
Bucket Width (mm)
1500
Attention: Skid steer loaders are highly customized products. Due to different customer requirements, different attachments, and different shipping destinations, the related costs will vary accordingly. Therefore, please contact our customer service before placing an order to confirm the relevant information, and then make the payment and arrange for the shipment.
