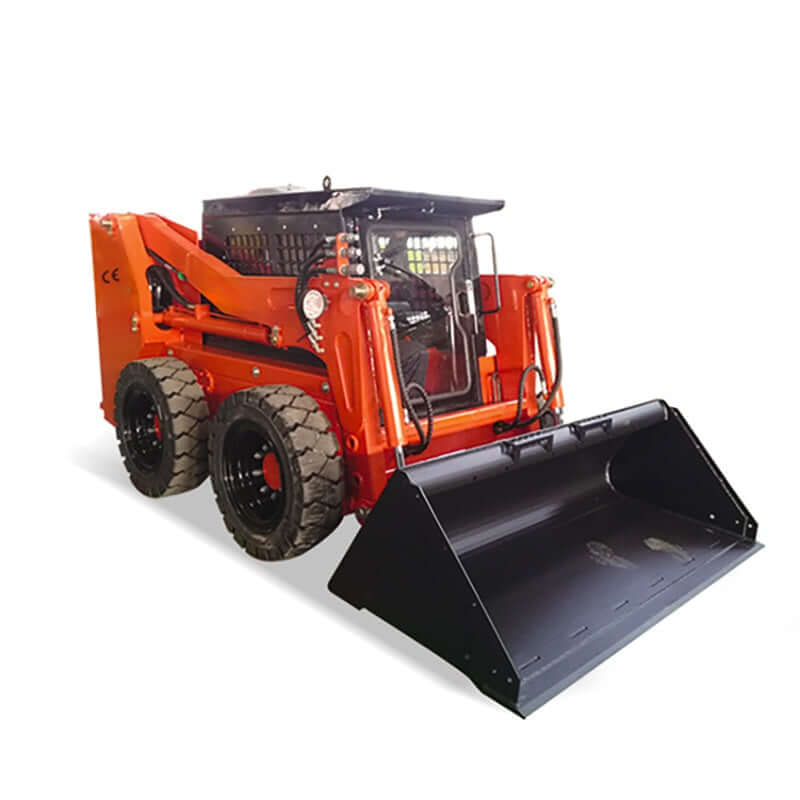

The TA50D Ultra-low Skid Steer Loader is a cutting-edge piece of machinery specifically designed to conquer the challenges posed by confined spaces and low-clearance areas. Combining a powerful performance with an ultra-low profile design, it offers an unrivaled combination of functionality, maneuverability, and versatility, making it the top choice for a diverse range of industries and applications.
Key Features and Advantages
-
Ultra-low Profile Design for Unrestricted Access
- With a cab top height of only 1600mm and an overall operating height of 3770mm, the TA50D's ultra-low design is its standout feature. This allows it to effortlessly glide into areas with extremely limited headroom, such as low-ceilinged warehouses, underground garages, basements, and tight construction sites. It can access spaces where traditional loaders would be hindered, thereby expanding the possibilities of operations in previously inaccessible areas.
-
Powerful Performance to Tackle Demanding Tasks
- Powered by a robust 45 Kw (equivalent to approximately [X] horsepower) diesel engine, the TA50D delivers exceptional power. It can handle a substantial rated operating load of 850 kg, enabling it to move large quantities of dirt, gravel, pallets, and other materials with ease. Whether it's loading and unloading heavy cargo, digging trenches, or performing backfilling operations, this loader ensures efficient and smooth execution of tasks.
-
Enhanced Maneuverability in Tight Spaces
- The TA50D's skid steer design, along with a front turning radius of 2010mm (with bucket) and 1228mm (without bucket), provides remarkable maneuverability. It can turn on a dime, allowing it to navigate around obstacles and through narrow passages without hesitation. This is especially crucial in busy work environments like construction sites, warehouses, and industrial facilities where space is at a premium.
-
Versatile Attachment Compatibility for Multiple Functions
- Compatible with a wide range of attachments including buckets, forks, augers, brooms, and more, the TA50D can transform to meet diverse task requirements. By simply swapping out the attachment, you can switch from loading to digging, sweeping, or any other function, offering unmatched versatility on the job site. This flexibility makes it an ideal choice for various applications across different industries.
-
Reliable and Durable Construction for Long-Term Use
- Built with high-quality materials and advanced engineering techniques, the TA50D is designed to withstand the rigors of heavy use. Its robust frame and components ensure long-term reliability, reducing maintenance costs and downtime. You can count on this loader to be a dependable asset for your business operations, providing consistent performance year after year.
Technical Specifications
| Parameter |
Specification |
| Model |
TA50D |
| Overall operating height (mm) |
3770 |
| Height to bucket hinge pin (mm) |
2810 |
| Height to top of cab (mm) |
1600 |
| Maximum height to the bottom of the raised bucket (mm) |
2643 |
| Without bucket length (mm) |
2800 |
| Overall length with bucket (mm) |
3490 |
| Dumping angle at maximum height (°) |
40 |
| Dumping height (mm) |
2080 |
| Dumping reach (mm) |
700 |
| Bucket reversal angle on the ground(°) |
30 |
| Bucket reverse angle at highest position(°) |
104 |
| Wheelbase (mm) |
991 |
| Ground clearance (mm) |
205 |
| Angle of departure (°) |
20 |
| Front turning radius without bucket (mm) |
1228 |
| Front turning radius (mm) |
2010 |
| Rear turning radius (mm) |
1746 |
| Rear axle to 保险杠长度 (mm) |
1208 |
| Tread width (mm) |
1450 |
| Width (mm) |
1720 |
| Bucket width (mm) |
1740 |
| Rated load (kg) |
850 |
| Max speed (km/h) |
6 |
| Rated flux (L/min) |
75 |
| High flow flux (L/min) |
/ |
| Tire (track) model |
28*9-15 |
| Rated power (Kw) |
45 |
| Fuel tank capacity (L) |
80 |
| Self weight bucket (kg) |
2800 |
| Bucket capacity (m³) |
0.4 |
Applications
-
Construction Industry
- Ideal for construction projects in confined spaces, such as building renovations in old structures with low ceilings or working on narrow city streets. It can handle tasks like moving building materials, digging trenches for utilities, and backfilling with ease, thanks to its power and maneuverability.
-
Landscaping
- Perfect for landscaping projects in tight areas like small gardens, urban parks, or around residential properties. The TA50D can transport soil, mulch, and plants, and with its attachment compatibility, it can also perform grading, tilling, and sweeping operations, enhancing the overall efficiency of landscaping work.
-
Agriculture
- Useful on farms for handling tasks in restricted spaces such as cleaning out barns with low ceilings, loading and unloading hay bales in narrow aisles, and transporting feed. Its compact size (relative to larger agricultural machinery) allows it to access these areas without causing stress to the animals or damage to the facilities.
-
Warehousing and Logistics
- In warehouses and distribution centers, the TA50D can be used to load and unload pallets of goods, move inventory around the facility, and assist with general material handling operations. Its ability to maneuver in tight spaces makes it an ideal choice for maintaining order and efficiency in storage areas, especially in facilities with low clearance or narrow aisles.
Customer Testimonials
"Since we started using the TA50D Ultra-low Skid Steer Loader, our work in tight spaces has become so much easier. It's powerful enough to handle all our heavy tasks, and the maneuverability is outstanding. We can easily get into areas that were previously inaccessible to us." - John, a construction contractor.
"The TA50D has been a game-changer for our landscaping business. It allows us to complete jobs faster and with more precision. The ergonomic cab design makes it comfortable for our operators to work long hours, and the different attachments make it easy to switch between tasks like digging and sweeping." - Sarah, a landscaper.
Conclusion
The TA50D Ultra-low Skid Steer Loader is a powerful, versatile, and reliable piece of equipment that offers outstanding performance in a wide range of applications. Whether you're in the construction, landscaping, agriculture, or warehousing and logistics industries, this loader can meet your needs and help you get the job done efficiently. Contact us today to learn more about the TA50D and how it can be a valuable addition to your equipment fleet.
Attention: Skid steer loaders are highly customized products. Due to different customer requirements, different attachments, and different shipping destinations, the related costs will vary accordingly. Therefore, please contact our customer service before placing an order to confirm the relevant information, and then make the payment and arrange for the shipment.
