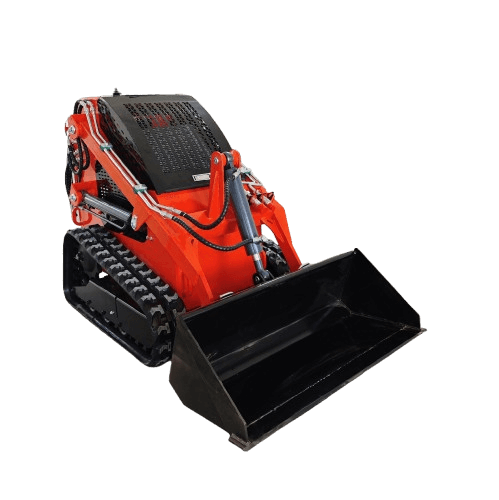

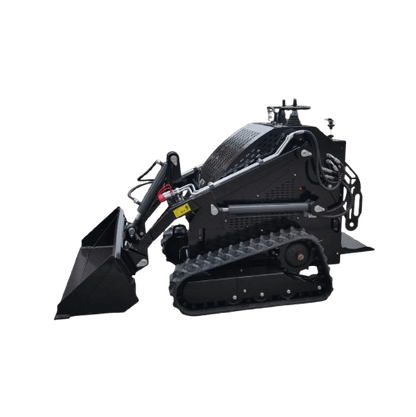

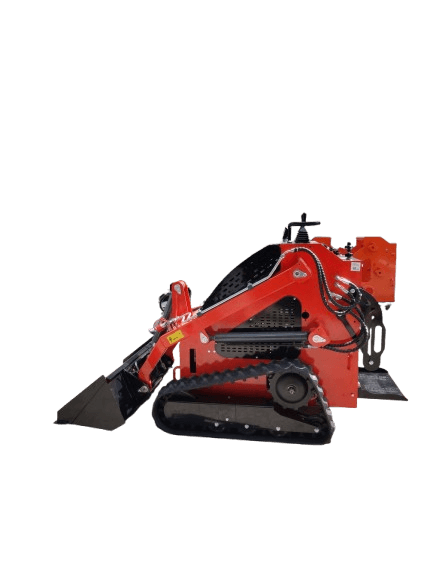

TA300L(1)Mini Tracked Skid Steer Loader

TA300L(1)Mini Tracked Skid Steer Loader

TA300L(1) Mini Tracked Skid Steer Loader by TAN AN Company - Product Specs

Company Overview

TAN AN Company presents the TA300L(1) Mini Tracked Skid Steer Loader, designed to meet diverse work needs.

Main Machine Performance Parameters

Power System

  • Engine Brands: KOPPER, RUNTO, BRIGGS & STRATTON
  • Rated Power: Available in 10HP, 15HP, 13.5HP configurations for various work conditions
  • Cylinders: Single - cylinder, easy to maintain
  • Intake: Natural, stable and reliable
  • Emission Standard: Euro 5 - EPA, low environmental impact

Work Capacity

  • Rated Load: 200 Kg for normal material handling
  • Max Load: 300 Kg for special/occasional heavy loads
  • Max Digging Force: 3.5 KN for efficient digging
  • Bucket Volume: 0.12 m³, reducing load/unload frequency and boosting efficiency

Work Performance

  • 3 Work Elements Sum: 9 secs, for better cycle completion of main actions
  • Work System Pressure: 17 - 21 bar, ensuring hydraulic stability and power

Travel Performance

  • Travel Speed: 0 - 6 km/h, suitable for short - distance on - site movement

Overall Dimension Parameters

Overall Size

  • Max Op Height: 2450 mm, defining high - altitude work range
  • Height to Bucket Pin: 1870 mm, crucial for height control
  • Vehicle Height: 1360 mm, key for passability in limited spaces
  • Max Bucket Flat Height: 1810 mm, helpful for parking and work positioning
  • Overall Length (no Bucket): 1550 mm, important for parking and narrow passage movement
  • Overall Length (with Std Bucket): 2100 mm, significant for site layout and entry/exit
  • Wheelbase: 850 mm, affecting travel stability and steering flexibility
  • Tail Length: 280 mm, useful for avoiding rear collisions
  • Vehicle Width: 930 mm, enabling smooth passage in narrow areas

Bucket - Related Dimensions

  • Bucket Width: 1000 mm, ensuring good material loading coverage
  • Max Height Unloading Angle: 34°, key for accurate unloading position
  • Unloading Height: 1510 mm, determining max vertical unloading height
  • Unloading Distance: 450 mm, important for arranging unloading position
  • Max Height Bucket Flipping Angle: 114°, ensuring bucket action accuracy and safety

Other Dimensions

  • Track Width: 180 mm, affecting travel stability and ground pressure
  • Ground Clearance: 150 mm, determining the ability to pass bumps/obstacles
  • Fuel Tank Cap: 5 L, dictating continuous work time after filling
  • Operating Mass: 900 Kg, important for transport and ground pressure consideration

If you want to know more, please click on the specific parameters.

Attention: Skid steer loaders are highly customized. Due to different customer needs, attachments, and shipping destinations, costs vary. Contact customer service before ordering to confirm details, then pay and arrange shipment.
