Home / Attachments / Trencher

Trencher Attachment for Skid Steer Loaders

A trencher cuts clean, uniform trenches for irrigation, drainage, cabling and utilities — far faster than excavating with a bucket and far cheaper than a dedicated trencher machine.

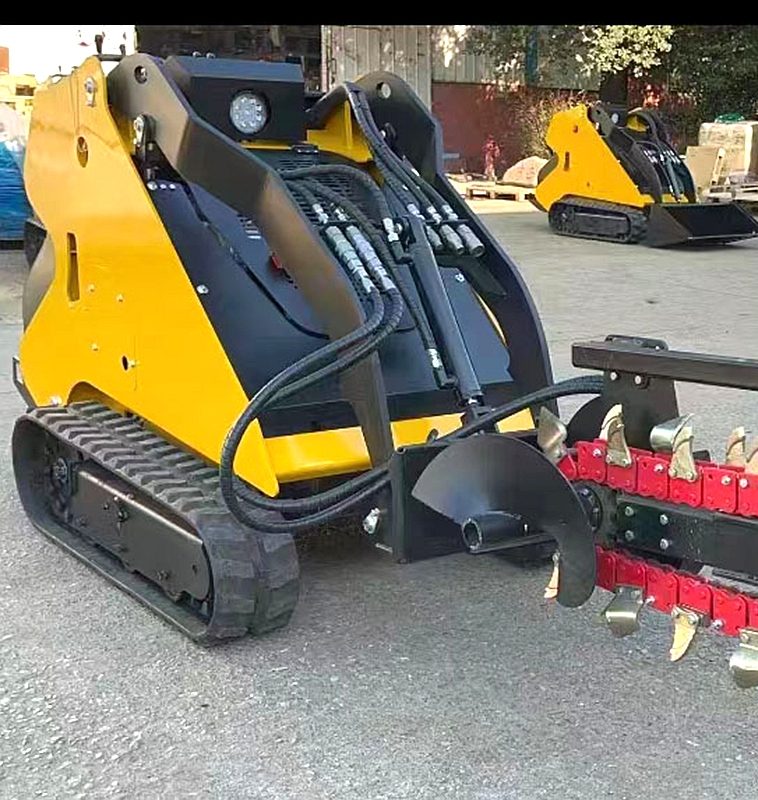

Mini skid steer loader with trencher attachment installed

What it is used for

How to choose a trencher

Trenching speed comes from a balance of chain width, tooth pattern, and hydraulic flow. A trencher that is pushed beyond its rated flow will bog down and stall, particularly in wet clay.

Common questions

Can a trencher cut through rock? It can cut weathered rock and compacted ground. Solid rock usually requires a rock saw or breaker instead.

How do I avoid chain stretch? Keep the chain tensioned to spec, grease the boom bearing on schedule, and do not reverse the chain under load.

Specification considerations

Chain width determines trench dimensions, and cutting depth varies by model. Ground conditions matter too — rocky or highly compacted ground requires more machine power and may slow progress significantly.

Trencher

Model designations: digging depth / chain width (mm).

SpecificationUnit900/2001200/3002000/150
Digging widthmm200300150-200
Digging depthmm90012002000
Operating pressureMPa161616
Hydraulic flowL/min50-7550-12550-125
Lengthmm195033003300
Widthmm116012651265
Heightmm850900900
Weightkg320530730

Double trencher

SpecificationUnit1000/200
Digging widthmm2 × 200
Digging depthmm900-1000
Operating pressureMPa16
Hydraulic flowL/min50-75
Lengthmm1950
Widthmm2160
Heightmm850
Weightkg620

Light-duty digger

SpecificationValue
Working width750 mm
Length1410 mm
Width1154 mm
Height856 mm
Weight260 kg

Specifications source: our factory’s current skid steer attachment manual. Nominal values — full datasheets with tolerances available on request.

Attachment system compatibility

All our attachments use the universal quick-attach mounting plate, with standard hydraulic quick couplers — compatible with widely available attachment brands. See our attachments overview for the full range and compatibility guidance.

Not sure which model fits?

Tell us your working conditions, payload requirements and destination port. Our export team will recommend the right configuration and send a full quotation within 24 hours.
